KIWI FPGA BOARD

Optimized FPGA Development Solutions

From educational projects to industrial applications, KIWI boards powered by Gowin chips deliver fast, efficient, and flexible development with built-in debugger, memory, and rich I/O interfaces.

View More
20K

Logic Units

Massive processing capacity on the KIWI Primer 20K – perfect for complex applications.

512 MB

DDR3 RAM

High-speed onboard memory for smooth, data-heavy performance.



3

ARM Cores

Integrated ARM Cortex-M1 and M3 across the lineup – combining hardware power with coding flexibility.

Built-in USB-JTAG for instant development.

You start with an idea, you wire up logic, you debug, test, refine — all without extra tools. You’re a maker, a builder, a developer. You value speed, clarity, control. You build what's next.

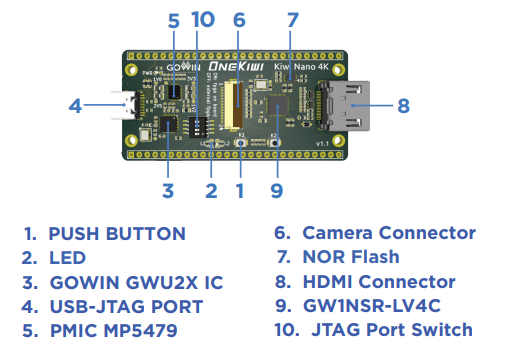

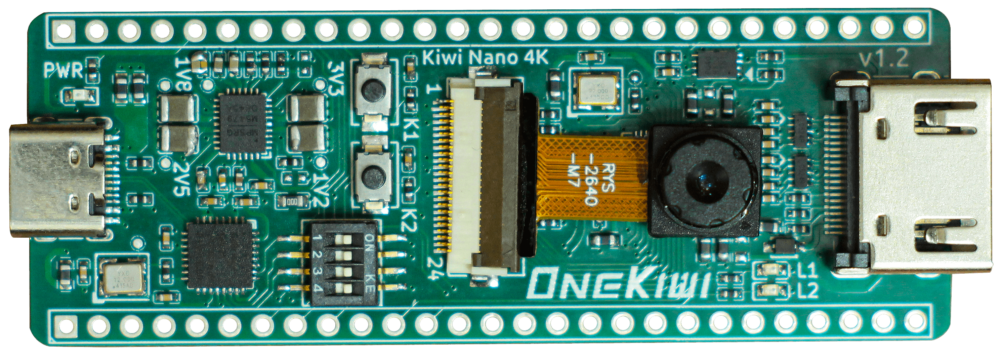

KIWI 4K FPGA BOARD

A compact and powerful FPGA board with ARM core, ideal for embedded and multimedia applications.

ARM Cortex-M3

Powerful hard-core processor for embedded applications.

HDMI & Camera

Ready for multimedia and image processing.

USB-JTAG

Built-in debugger for easy programming.

32Mbit Flash

Reliable onboard storage for code and data.

Detail

KIWI 1P5 FPGA BOARD

A lightweight and practical FPGA board with USB-UART and onboard debugger – ideal for education and embedded control.

ARM Cortex-M3

Powerful hard-core processor for embedded applications.

HDMI & Camera

Ready for multimedia and image processing.

USB-JTAG

Built-in debugger for easy programming.

32Mbit Flash

Reliable onboard storage for code and data.

Detail

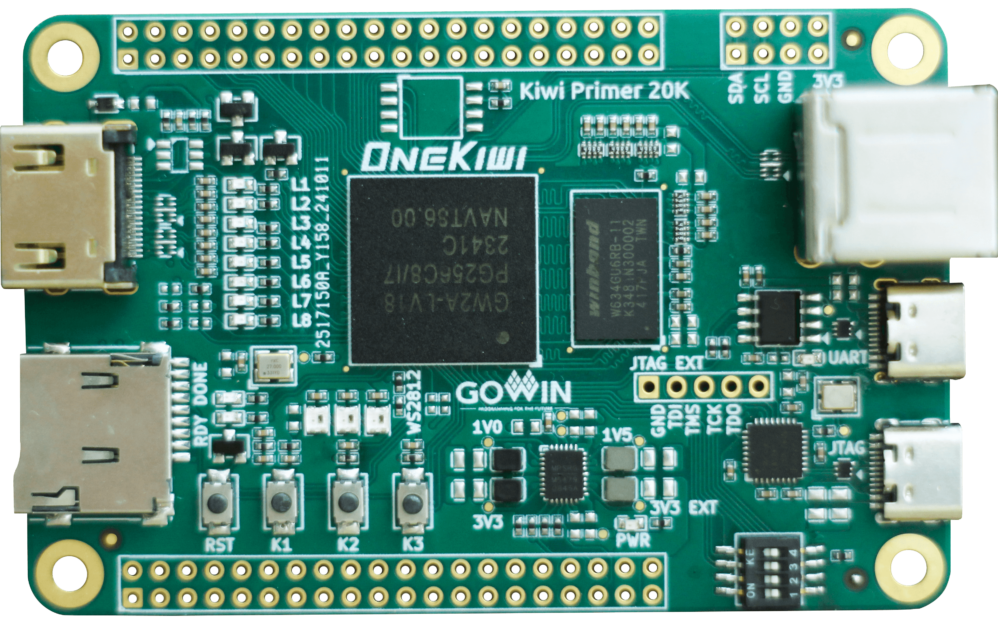

KIWI PRIMER 20K FPGA BOARD

A powerful FPGA board with 20K+ LUTs, built-in DDR3, HDMI, and dual USB. Ideal for complex designs, verification, and professional training.

High-Capacity FPGA

Powered by 20,736 LUTs and support for ARM Cortex-M1 soft-core.

Integrated DDR3 Memory

Comes with 512MB DDR3 SDRAM and 128Mbit NOR Flash onboard.

Rich Connectivity

Includes HDMI, microSD, Dual USB ports, and USB-JTAG (GWU2X).

Ideal for Prototyping

Perfect for IP verification, industrial applications, and education at scale.

Detail

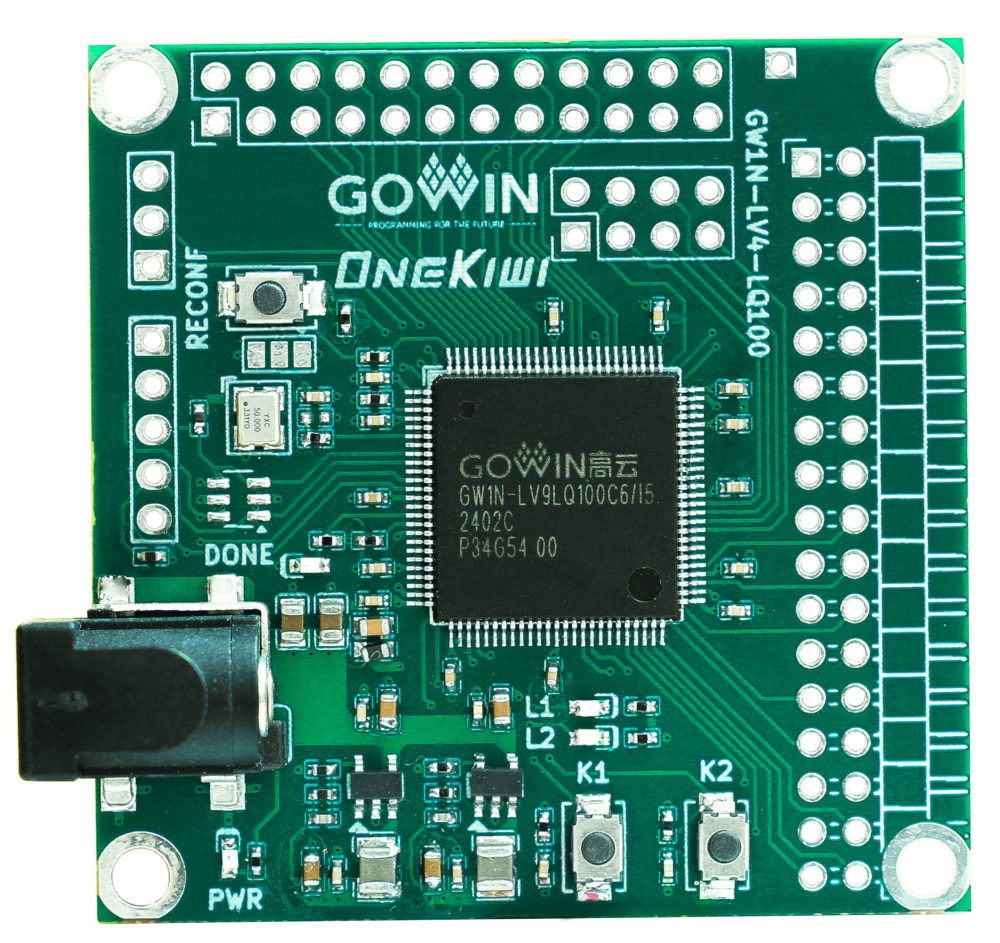

KIWI TINI FPGA BOARD

Compact industrial-grade FPGA board with up to 9K LUTs, stable 5V DC input, and USB-JTAG. Perfect for embedded systems and industrial automation.

Industrial-Grade Build

Durable design for long-term deployment in harsh environments.

Up to 9K LUTs

Flexible logic capacity suitable for various embedded applications.

Simple Power & Debug

Powered via 5V DC jack and debugged through USB-JTAG.

Compact Form Factor

Ideal for space-constrained systems and hardware integration.

Detail

Master FPGA Programming
From Zero to Real-World Projects

Beginner-Friendly

No prior experience needed – we start from the fundamentals.

Hands-On Learning

Build real circuits, test real code, gain real skills.

Work With Real Boards

Practice with KIWI FPGA boards and real-world interfaces.

    Code + Simulate

    Learn to use Verilog/VHDL, simulate with tools like ModelSim.

    Video Tutorials

    Step-by-step guidance through each project.

    Certificate Included

    Receive a certificate upon successful completion.
